tt685 Fuji

Description

Features:

Built in X trigger system compatible with all other Godox X system items.

2.4G wireless transmission with all-in-one functions and 100 meters further transmission.

Full TTL Functions

Supports HSS(max. 1/8000s), FEC, FEB, FE lock, front & rear curtain sync, modeling flash, control with camera’s menu screen. Etc.

TTL Wireless Flash Trigger X1F Offers Better User Experience (Sold separately)

With 2.4G wireless transmission, X1F (for Fujifilm ) can be used to trigger camera flash, studio flash and camera shutter over 100 meters’ distance.

Support for I-TTL II autoflash, 1/8000 high-speed sync, flash exposure compensation, flash exposure lock, modeling flash, etc.

With wireless grouping system (max. 5 groups & 32 channels) to satisfy various shooting requirements.

Big LCD panel to offer convenient operation.

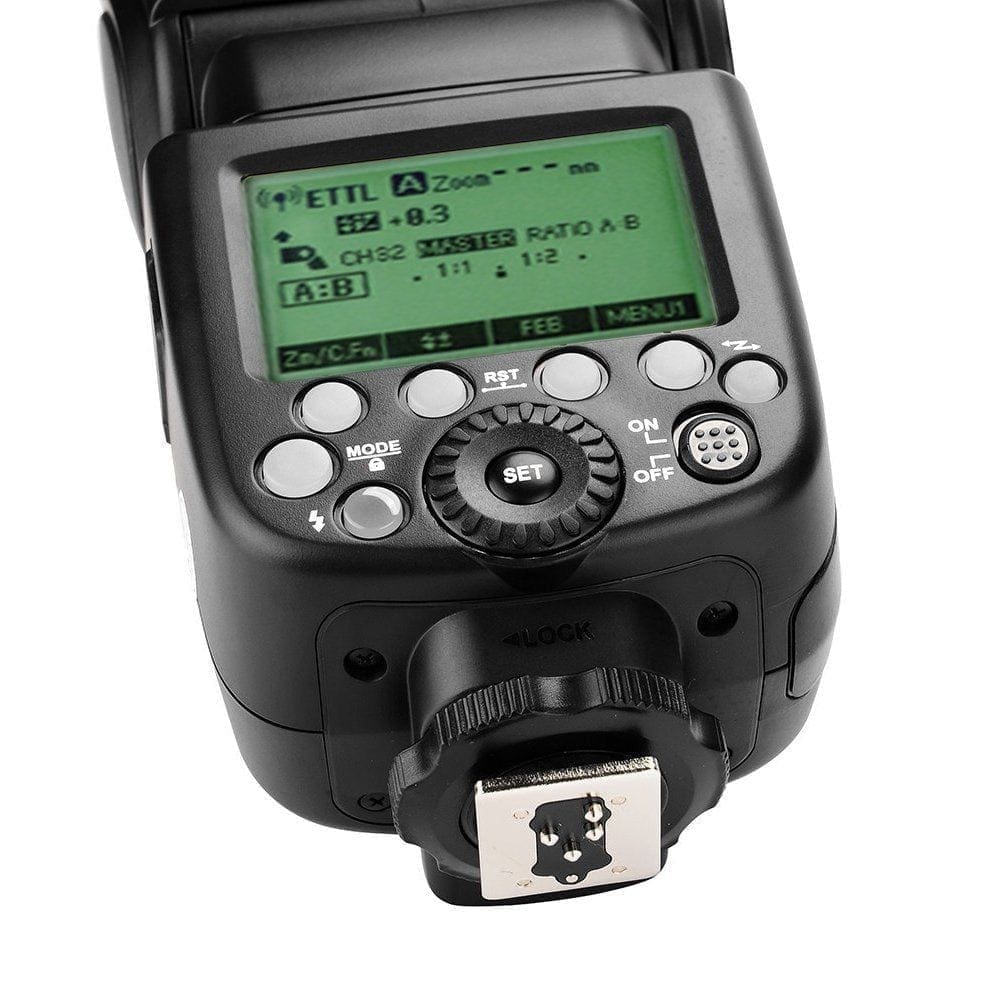

Convenient Dot-matrix LCD panel

With dot-matrix LCD panel to offer clear and easy operation.

Use 4 function buttons to change various settings according to different situations.

Turn the select dial to choose the amount of the settings.

Withstanding Overheat and Useful Functions

GN60 (m ISO 100, @105mm), 22 steps of power output (1/1-1/128)

Approx. 0.1-2.6s recycle time, 230 full power flashes (using 2500 Ma Ni-MH batteries)

Support TTL / M /S1/ S2 modes, 20-200m auto/manual zooming.

With C.Fn custom function settings.

Technical Data:

Model: TT685F

Compatible Cameras:Fujifilm  cameras (I-TTL II autoflash)

Guide No. (1/1 output @200mm): 60(m ISO 100); 190 (feet ISO 100)

Flash Coverage:·20 to 200mm (14mm with wide panel)

·Auto zoom (flash coverage set automatically to match the lens focal length and image size)

·Manual zoom

·Swinging / tilting flash head (bounce flash): 0° to 360°horizontally and -7° to 90° vertically

Flash Duration: 1/300 to 1/20000 seconds

Exposure control system:I-TTL II autoflash and manual flash

Flash exposure compensation(FEC): Manual FEB: ±3 stops in 1/3 stop increments (Manual FEC and FEB can be combined)

FE lock: With 〈FEL〉button or 〈*〉button

Sync Mode: High-speed sync (up to 1/8000 seconds), first-curtain system, and second-curtain sync

Multi Flash: Provided (up to 100 times,199Hz)

Wireless flash function: Master, Slave, Off

Controllable slave groups: 3(A, B, and C)

Transmission range:·Optic: Indoors: 12 to 15m/39.4 to 49.2 ft.; Outdoors: 8 to 10m/26.2 to 32.8 ft.; Master unit reception angle: ±40° horizontally±30° vertically,

·2.4G: 100m

Channels: Optic: 4 (1,2,3,and 4)

2.4G: 32（1-32）

Slave-ready indicator: Two ref indicators blink

Modeling flash: Fired with camera’s depth-of-field preview button

Auto Focus Assist Beam: Effect range: Center: 0.6-10m /2.0-32.8 feet/ Periphery: 0.6-5m / 2.0-16.4 feet

Power Supply: Ni-NH batteries (recommended) or 4*LR6 alkaline batteries

Recycle Time: Approx. 0.1-2.6s (eneloop Ni-NH batteries of Panasonics).

Full power flashes: Approx.230 (2500mA Ni-MH batteries)

Power Saving: Power off automatically after approx.90 seconds of idle operation.(60 minutes if set as slave)

Sync Triggering Mode: Hotshoe, 3.5mm sync line, Wireless control port

Color Temperature: 5600 ± 200K

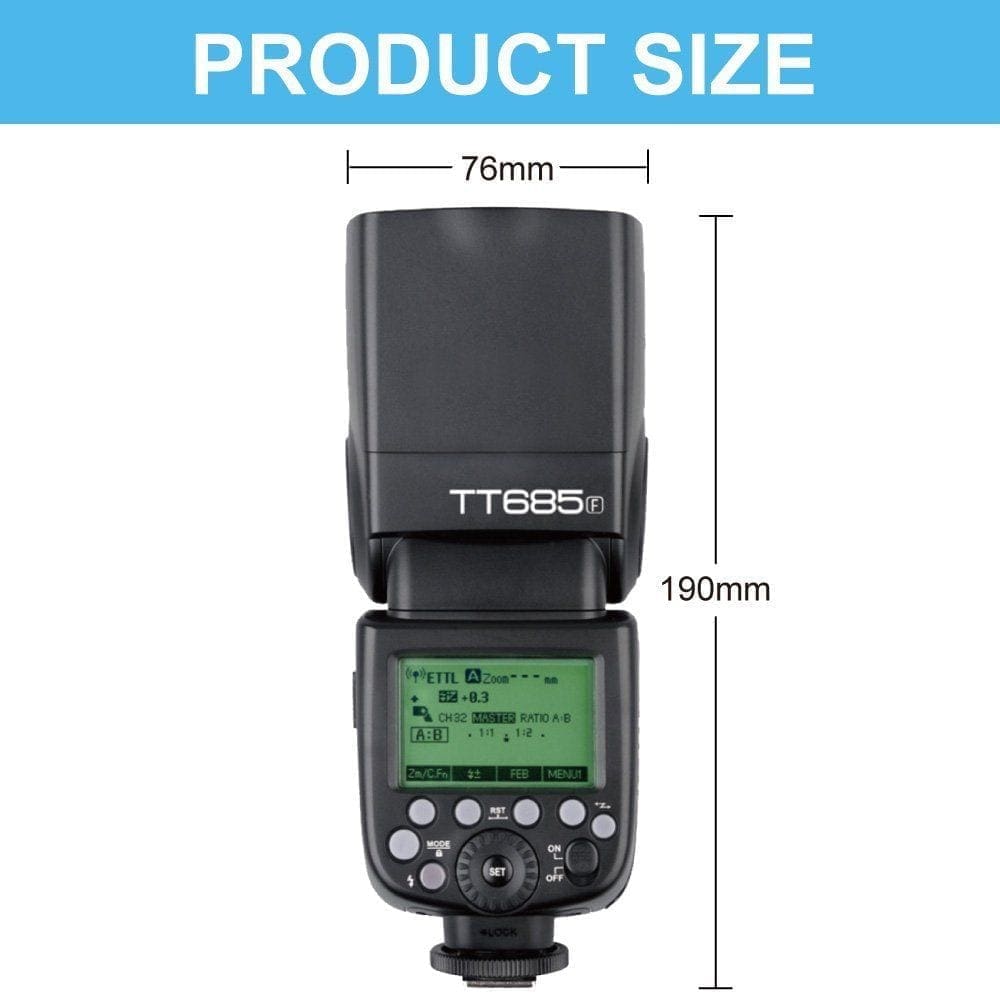

Dimension: 64*76*190mm (WxHxD)

Weight: 410g (without battery, camera flash only)

Contents:

1 x Godox TT685Fcamera flash For Fujifilm

1 x Mini stand

1 x Protection bag

1 x User Manual
